I recently needed to use Terraform to deploy Azure services via Azure DevOps.
Having focused on Bicep for the past couple of years, it’s been a while since I’ve used Terraform, so I was looking for a quick example Azure DevOps (ADO) deployment pipeline.
There are some good references out there, but I felt most of them skimmed over some key configuration, such as Azure subscription permissions or ADO secrets.
This guide will cover everything required to deploy an example Azure Service Bus instance via Terraform and ADO.
In addition to creating an example pipeline, we’ll also add enhanced capabilities, including -
Hosting the Terraform backend state on Azure blob storage
Creating a deployment Service Principal + setting RBAC permissions on the Azure subscription
Create a multi-stage ADO pipeline with an approval step
Demonstrating how we can scale with multiple deployments
If you’d like to skip straight to the download of the example pipeline and Terraform code, it can be found on GitHub.
Overall Topology
In this diagram, we can see all of the different supporting components required to deploy the Terraform code and the actual Service Bus instance itself -
There are a couple of things worth highlighting -
ADO build agent - more advanced deployment scenarios sometimes require the use of self-hosted agents due to network or security requirements. But for simplicity, we’ll use the ADO-hosted Linux (Ubuntu) build agent, which already has Terraform installed.
Git repo - all of the pipeline config and Terraform code is hosted in a single ADO Git repo
Terraform state file - the state file is hosted in the same Azure subscription, but this could be located on any storage account (permissions permitting)
Azure resource group - the target resource group for the Service Bus instance is env01-tfdemo-rg. This will also be created by Terraform.
For easy reference, these are the files we’ll be working with -
The pipeline yaml definitions can reside anywhere within our repo but I prefer to store them in a /deploy folder.
Okay, let’s get into it!
Create the Service Principal
First things first, a Service Principal (SPN) is required to allow Terraform on the ADO build agent to authenticate against the Azure subscription and create Azure resources -
Within the Azure Portal, open Microsoft Entra ID
Create a new App registration, tfdemo-spn (accept the default settings)
Make a note of the Application (client) ID and Directory (tenant) ID as we’ll need these later
Under Certificates & Secrets, create a new secret called ADO. Make a note of this value, too.
Create the Terraform State Storage Account
Terraform stores its view of our infrastructure and associated metadata in a state file. The state file is central to Terraform's operation and must be stored in an appropriate location.
Storing the state file locally is fine for basic testing, but for automated deployments, it must be hosted somewhere the ADO build agent can access. Typically, this is an Azure blob storage account (or an S3 bucket if you’re using AWS).
The steps below describe how to implement this part of the configuration (this is completed manually). Within the Azure Portal -
Create a new resource group, tfstate-tfdemo-rg
Create a new storage account, tfstatedemostg (accept all default configuration settings)
Create a tfstate blob container.

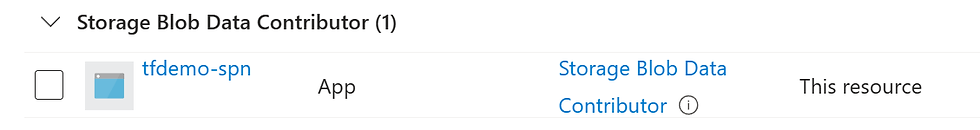

Under Access Control (IAM) for the storage account, grant the Storage Blob Data Contributor role to the SPN
There’s no need to manually create the tfstate file. This will be automatically be created when Terraform first runs within the pipeline.
Set Azure Subscription Permissions
In the above step, we granted the SPN permission to write the tfstate file to the storage account. The SPN also needs additional permissions to deploy the Azure resources in the wider subscription.
Setting appropriate SPN permissions is a topic in itself, but for now, we’ll grant the SPN Contributor permissions on the entire subscription. This allows Terraform on the build agent to create the env01-tfdemo-rg resource group and the Service Bus resources inside it -
Within the Azure Portal, browse to the target subscription
Select Access control (IAM)
Create a new role assignment and assign the SPN the Contributor role
An alternate approach is to pre-create the target resource group. This allows the SPN permissions to be more tightly scoped to the existing resource group instead of the entire subscription.
Create the Service Bus Terraform Code
In this example, we'll keep it nice and simple and deploy a Service Bus namespace and two queues. This is the Terraform code, servicebus.tf -
# Service Bus - namespace
resource "azurerm_servicebus_namespace" "sbus" {
name = "${var.project}-${var.environment}-sbns"
location = azurerm_resource_group.rg.location
resource_group_name = azurerm_resource_group.rg.name
tags = local.tags
local_auth_enabled = false
minimum_tls_version = "1.2"
network_rule_set {
default_action = "Allow"
public_network_access_enabled = true
trusted_services_allowed = false
}
public_network_access_enabled = true
sku = "Standard"
}
# Service Bus - queue01
resource "azurerm_servicebus_queue" "queue01" {
name = "queue01"
namespace_id = azurerm_servicebus_namespace.sbus.id
default_message_ttl = "P14D"
dead_lettering_on_message_expiration = false
duplicate_detection_history_time_window = "PT10M"
enable_batched_operations = true
enable_partitioning = false
lock_duration = "PT1M"
max_delivery_count = 10
max_size_in_megabytes = 1024
requires_duplicate_detection = false
requires_session = false
}
# Service Bus - queue02
resource "azurerm_servicebus_queue" "queue02" {
name = "queue02"
namespace_id = azurerm_servicebus_namespace.sbus.id
default_message_ttl = "P14D"
dead_lettering_on_message_expiration = false
duplicate_detection_history_time_window = "PT10M"
enable_batched_operations = true
enable_partitioning = false
lock_duration = "PT1M"
max_delivery_count = 10
max_size_in_megabytes = 1024
requires_duplicate_detection = false
requires_session = false
}Also of interest is the providers.tf file. Here, we can see that the state file is configured to be hosted on the storage account we created earlier -
terraform {
required_providers {
azurerm = {
source = "hashicorp/azurerm"
version = "~>3.0"
}
random = {
source = "hashicorp/random"
version = "~>3.0"
}
}
backend "azurerm" {
resource_group_name = "tfstate-tfdemo-rg"
storage_account_name = "tfstatetfdemostg"
container_name = "tfstate"
key = "tfdemo.env01.tfstate"
}
}
provider "azurerm" {
features {}
}The full Terraform code can be found on GitHub and includes the additional files, such as tfdemo.env01.tfvars which defines the resource names.
Configure Azure DevOps
Within ADO, we need to configure a couple of things to get everything working.
Create a Variable Group
The variable group contains the details of the Service Principal we created earlier. Terraform will use these values to authenticate against the target Azure subscription -
Create a variable group, Terraform_SPN , within Pipelines → Library
Create the following variables using the SPN’s values from earlier
ARM_CLIENT_ID
ARM_CLIENT_SECRET
ARM_SUBSCRIPTION_ID
ARM_TENANT_ID
These variable names are of special significance to Terraform. When set as environment variables within the ADO build agent, Terraform will automatically attempt to authenticate against Azure using their values.
Your variable group should look something like this -
Create the ADO Environment
By creating an ADO environment and referencing it within our pipeline, we can add an approval step.
When deploying the pipeline, we want an opportunity to review the output from the Terraform Plan stage. Only once we’re comfortable with the planned changes do we approve the Terraform Apply stage to create the resources.
To create an ADO environment -
Within Pipelines → Environments select New Environment
Set the name as env01 and click Create
Once created, select Approvals and Checks and click “+”
Select Next and add the required approver, i.e. ourselves (fine-tune these settings as required for your organization)
The created environment ->
Create the Pipeline
For this example, I’m leveraging an Azure DevOps yaml template. If we wish to later scale out our deployments with multiple environments, etc., it is much easier to create a single reusable Terraform deployment pipeline.
First, the template deployment pipeline definition, terraform-template.yml -
parameters:
- name: rootFolder
type: string
- name: tfvarsFile
type: string
- name: adoEnvironment
type: string
stages:
- stage: 'Terraform_Plan'
displayName: 'Terraform Plan'
jobs:
- job: 'Terraform_Plan'
pool:
vmImage: 'ubuntu-latest'
steps:
- script: |
echo "Running Terraform init..."
terraform init
echo "Running Terraform plan..."
terraform plan -var-file ${{ parameters.tfvarsFile }}
displayName: 'Terraform plan'
workingDirectory: ${{ parameters.rootFolder }}
env:
ARM_CLIENT_SECRET: $(ARM_CLIENT_SECRET) # this needs to be explicitly set as it's a sensitive value
- stage: 'Terraform_Apply'
displayName: 'Terraform Apply'
dependsOn:
- 'Terraform_Plan'
condition: succeeded()
jobs:
- deployment: 'Terraform_Apply'
pool:
vmImage: 'ubuntu-latest'
environment: ${{ parameters.adoEnvironment }} # using an ADO environment allows us to add a manual approval check
strategy:
runOnce:
deploy:
steps:
- checkout: self
- script: |
echo "Running Terraform init..."
terraform init
echo "Running Terraform apply..."
terraform apply -var-file ${{ parameters.tfvarsFile }} -auto-approve
displayName: 'Terraform apply'
workingDirectory: ${{ parameters.rootFolder }}
env:
ARM_CLIENT_SECRET: $(ARM_CLIENT_SECRET)... and the pipeline definition, tfdemo-env01-terraform.yml, for our specific deployment (tfdemo-env01-rg) that calls the template above -
name: Terraform - deploy Service Bus to env01
trigger: none
variables:
- group: Terraform_SPN
- name: rootFolder
value: '/terraform/'
- name: tfvarsFile
value: 'tfdemo.env01.tfvars'
- name: adoEnvironment
value: 'env01'
stages:
- template: templates/terraform-template.yml
parameters:
rootFolder: $(rootFolder)
tfvarsFile: $(tfvarsFile)
adoEnvironment: $(adoEnvironment)To create the pipeline -
Pipelines → New pipeline
Select Azure Repos Git
Select the repo, i.e. tfdemo
Select Existing Azure Pipelines YAML file. Note - we select the pipeline .yml rather than the template .yml
From the Run dropdown, select Save
The default pipeline name of tfdemo is fine, but this can be renamed to something more meaningful, i.e. tfdemo-env01-terraform
Browsing our list of pipelines, our newly created pipeline is now visible -
That’s it! We’ve created a new pipeline, the variable group and ADO environment.
Run and Test the Pipeline
Finally, we're ready to run the pipeline and deploy our Service Bus instance for the first time.
After the pipeline has completed the Terraform_Plan stage, we can validate what Terraform expects to deploy. As the Service Bus instance doesn't yet exist, it correctly states that it will be created -
Now we've satisfied ourselves that the Terraform_Plan stage is correct, click Review and Approve on the Terraform_Apply stage.
The pipeline takes a few minutes to complete -
...and the resource group and Service Bus instance are created successfully -
On the first run of the pipeline, you will be prompted to grant access to the Terraform_SPN variable group and the ENV01 environment. Just click Permit when prompted.
Scaling the Deployment
In this example, we’ve deployed a single resource group with limited resources. But it’s possible quite easily to scale this approach.
For example, imagine the scenario where we must deploy an application hosting environment. Depending on the application, this could include a multitude of Azure services such as an AKS cluster, storage accounts, Application Gateway, VNET, Azure SQL databases, etc.
These services can all be deployed to the same resource group to provide a self-contained hosting environment, i.e. DEV. We can then take this a step further by deploying additional environments, i.e. UAT, PROD, etc., by reusing the same Terraform and pipeline definitions.
The key to making this work is parameterising everything within the Terraform and pipeline definitions.
The diagram below shows how, by copying/pasting our existing definitions, and updating a few key values within them, replica environments can easily be deployed.
Conclusion
I hope you found this post useful. In this example, we deployed a simple Terraform definition for an Azure Service Bus instance using an ADO pipeline. This Terraform code can easily be extended to deploy additional Azure services as required.
You may also find the following links useful -
My GitHub repo used for this tutorial
Microsoft: Terraform on Azure documentation
Microsoft: Create an Azure resource group using Terraform quickstart
Hashicorp: How to authenticate Terraform to Azure using a SPN
As always, feedback and questions are welcome.
